In CNC machining, issues like overcut and tool deflection frequently occur, leading to reduced workpiece precision and tool damage. To address these challenges, this article systematically introduces a 4-step solution. First, we will explore precise tool selection strategies to help you choose suitable tools and apply compensation methods. Second, we will elaborate on key parameter optimization techniques, including adjusting settings such as rotational speed, feed rate, and depth of cut. Then, we will discuss measures to enhance clamping stability, ensuring a more reliable machining process. Next, we will provide practical improvement strategies that you can immediately apply in real work. By following these steps, you can gradually reduce vibration and overcut risks, and improve overall machining efficiency.
Precise Tool Selection Strategies
Selecting the right tool is the crucial first step in resolving overcut and tool deflection issues in CNC machining. A tool is like the “arm” in machining—its quality directly impacts machining results.
Focus on tool rigidity: Tools with high rigidity are less prone to bending and deformation during cutting, which can effectively reduce vibration and avoid the “tool deflection” phenomenon.
Avoid excessively long tools: An overly long tool overhang increases the risk of wobbling during cutting. Choosing the shortest possible tool can improve stability.
Pay attention to the tool nose radius: A smaller tool nose radius is more suitable for finishing and contour machining, as it enables more precise control of the cutting path and reduces the likelihood of overcut.
For example, when machining parts with complex shapes, using end mills with short shanks, high rigidity, and small fillets usually yields better results. Notably, this tool selection principle is equally critical for machining core components of Automatic spring equipment—key equipment in the spring manufacturing industry. The precision parts of automatic spring equipment (such as spring seats, guide shafts, and precision sliders) require ultra-high dimensional accuracy and surface smoothness to ensure the stable operation of the spring forming process. Selecting tools with high rigidity, appropriate length, and small nose radius can effectively avoid overcut and tool deflection during their machining, ensuring that the processed parts perfectly match the assembly requirements of automatic spring equipment and preventing equipment jamming or spring forming defects caused by machining deviations.
Key Parameter Optimization Methods
Properly setting machining parameters is the core step in solving overcut and tool deflection problems:
Rotational speed: The speed should not be too high, otherwise the tool is prone to heating and deformation; but an excessively low speed will affect efficiency. It is necessary to find a balance based on the tool material and workpiece material.
Feed rate: This parameter is critical. An overly fast feed rate increases the impact force on the tool, which is likely to cause vibration and lead to overcut; an overly slow feed rate reduces efficiency. Generally, on the premise of ensuring machining quality, the feed rate can be appropriately reduced to lighten the tool load.
Depth of cut: This also needs strict control. An excessively deep single cut will subject the tool to excessive force, which not only easily causes tool deflection but also accelerates tool wear. Therefore, it is recommended to adopt a smaller depth of cut and complete the machining task through multiple passes.
By finely adjusting these three key parameters, vibration and overcut risks during machining can be significantly reduced.

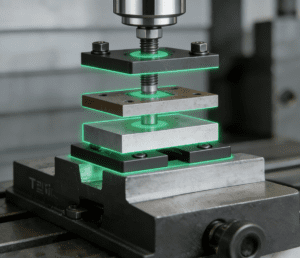

Enhancing Clamping Stability
Secure clamping is a key step in preventing overcut and tool deflection:
Ensure the workpiece is tightly fixed on the machine tool table by the fixture without any looseness or wobbling.
Check whether the fixture itself is sufficiently sturdy. If the fixture has insufficient rigidity, the force generated during tool cutting will cause it to deform, which in turn leads to workpiece displacement, triggering vibration and overcut.
Consider the shape and size of the workpiece. For thin-walled parts with special shapes or those prone to deformation, special support blocks or additional pressure plates may be required to provide better support and distribute cutting forces.
Experience shows that more than 20% of vibration problems stem from unstable clamping. By carefully inspecting and strengthening the clamping process, the wobbling of the tool during movement can be significantly reduced, laying a solid foundation for subsequent precision machining.
Practical Implementation Solutions
After optimizing tool selection and key parameters, the next step is to apply these strategies to actual operations:
Precisely select the tool type according to material hardness—for example, using cemented carbide tools to reduce overcut risks.
Adjust rotational speed and feed rate: Reducing the feed rate can effectively suppress vibration and avoid tool deflection issues.
Enhance workpiece clamping stability by using special fixtures to ensure a stable machining process.
For instance, a factory successfully eliminated overcut by precisely controlling the depth of cut and feed rate parameters. These steps are simple and feasible, and can immediately improve CNC machining efficiency and quality.
Through precise tool selection, optimization of machining parameters, and enhancement of clamping stability, overcut and tool deflection problems in CNC machining can be effectively controlled. These steps complement each other, helping operators reduce vibration and improve machining precision. For example, selecting the appropriate tool type can reduce cutting force, while adjusting rotational speed and feed rate can balance efficiency and stability. Meanwhile, a stable clamping device ensures the workpiece does not move, avoiding accidental overcut. Integrating these methods into daily operations allows you to quickly resolve common challenges and achieve a smoother, more efficient machining process.
